Beacons By Band Tab

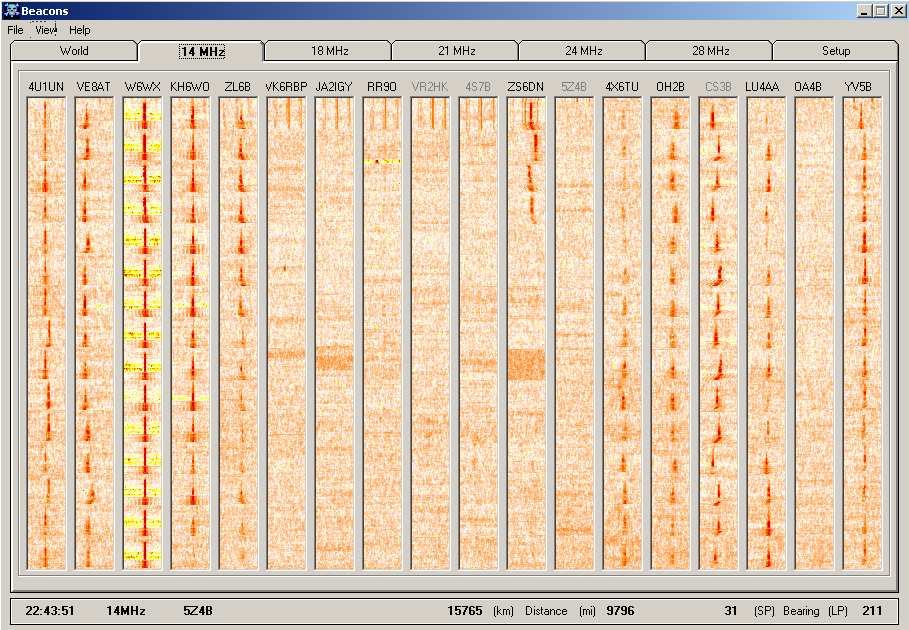

This is a Beacons 'by-band' tab; obviously for 14 MHz. The waterfalls with the grayed out headings are data being collected for beacons that may not be on the air (the user can set).
This view of the data shows "where in the world" conditions support signal propagation for a given frequency. Across the bottom of the display are the bearings and distances to the currently transmitting beacon.
